AI Workflows in .NET with Elsa 3 (Step-by-Step Implementation)

Elsa is an open-source workflows library that can be used in any kind of .NET Core application. Using such a workflow library can be useful to implement business rules visually or programmatically...

In this article, we'll explore how to integrate Elsa 3, the powerful workflow engine in a .NET application. This is a continuation of my previous post where I covered Elsa 2.x integration a long time ago.

Here, we'll dive into the latest version and create an AI-powered workflow example.

Prefer watching instead? Check out the video below 👇

Scenario

In this tutorial, we'll build an AI-powered question-answering system using Elsa workflows. Our workflow will accept questions via HTTP endpoints and use Ollama's LLM capabilities to generate responses. This demonstrates how to combine ABP's enterprise features with Elsa's workflow management and AI integration.

Let's get started!

Step 1: Creating the ABP Application

First, let's create a new ABP application with MVC and PostgreSQL:

abp new AbpWorkflowDemo -t app -u mvc -d ef -dbms PostgreSQL

Or alternatively, you can use the ABP Studio UI to create the project: https://abp.io/docs/latest/get-started/layered-web-application?UI=MVC&DB=EF&Tiered=No

Step 2: Adding Elsa 3 Dependencies

Add the following NuGet packages to your AbpWorkflowDemo.Web project:

dotnet add package Elsa
dotnet add package Elsa.EntityFrameworkCore.PostgreSql
dotnet add package Elsa.Workflows.Api

These packages provide:

• Core Elsa functionality

• PostgreSQL persistence

• API endpoints for workflow management

---

---

Step 3: Configuring Elsa in ABP

Let's configure Elsa in the AbpWorkflowDemoWebModule.cs file. Here's the configuration with detailed explanations:

	//...
	public class AbpWorkflowDemoWebModule : AbpModule
	{
	//...
	public override void ConfigureServices(ServiceConfigurationContext context)
	{
	context.Services.AddElsa(elsa =>
	{
	// Configure Management Layer to use EF Core.
	elsa.UseWorkflowManagement(management => management.UseEntityFrameworkCore(ef => ef.UsePostgreSql(configuration.GetConnectionString("Default")!)));
	// Configure Runtime Layer to use EF Core.
	elsa.UseWorkflowRuntime(runtime => runtime.UseEntityFrameworkCore(ef => ef.UsePostgreSql(configuration.GetConnectionString("Default")!)));
	// Register custom activities from the application
	elsa.AddActivitiesFrom<AbpWorkflowDemoWebModule>();
	// Register custom workflows from the application
	elsa.AddWorkflowsFrom<AbpWorkflowDemoWebModule>();
	// Expose Elsa API endpoints.
	elsa.UseWorkflowsApi();
	// Enable HTTP activities.
	elsa.UseHttp();
	});
	}
	//...
	}

view raw AbpWorkflowDemoWebModule.cs hosted with ❤ by GitHub

This configuration:

• Sets up PostgreSQL as the database for workflow persistence

• Enables workflow management and runtime features

• Registers custom activities and workflows

• Exposes API endpoints for workflow management

• Enables HTTP activities for web-based workflows

Add the following middleware to the OnApplicationInitialization method:

	app.UseRouting();
	app.UseWorkflowsApi(); // Use Elsa API endpoints.
	app.UseWorkflows(); // Use Elsa middleware to handle HTTP requests mapped to HTTP Endpoint activities.
	app.UseAbpSecurityHeaders();

view raw AbpWorkflowDemoWebModule.cs hosted with ❤ by GitHub

After configuring Elsa with PostgreSQL, the Elsa workflow library automatically creates several tables to manage workflows, activities, and their execution states. Let's run our application to see these tables in action:

dotnet run --project AbpWorkflowDemo.Web

Once the application is running, you can check your PostgreSQL database to see the following tables:

These tables are essential for Elsa's operation:

• WorkflowDefinitions: Stores workflow definitions

• WorkflowInstances: Tracks running workflow instances

• WorkflowExecutionLogRecords: Maintains execution history

• Bookmarks: Manages workflow bookmarks for resuming workflows

• Triggers: Stores workflow triggers

• ...

These tables will be populated as we create and run workflows in the next sections. The database structure ensures that our workflows are persistent and can be resumed even after application restarts.

Step 4: Creating an AI-Powered Workflow

Let's create an interesting example that combines Elsa Workflows with AI capabilities. We'll use Ollama with the Llama 3.1 model to create a question-answering workflow.

First, install the Ollama package (don't forget to use the prerelease version (--prerelease)):

dotnet add package Microsoft.Extensions.AI.Ollama --prerelease

Start the Ollama server:

ollama run llama3.1

If you haven’t used Ollama before, you should first download it to your PC (https://ollama.com/download). After setting Ollama up, then you can pull the model with the command: `ollama pull llama3.1`.

Also, you can check my video to set-up Ollama and using it in a .NET application:

Now, let's create our AI-powered workflow. Create a new file AIQuestionAnsweringWorkflow.cs in the Workflows folder:

	using System;
	using System.Collections.Generic;
	using System.Net;
	using System.Threading;
	using System.Threading.Tasks;
	using Elsa.Http;
	using Elsa.Workflows;
	using Elsa.Workflows.Activities;
	using Microsoft.AspNetCore.Http;
	using Microsoft.Extensions.AI;
	namespace AbpWorkflowDemo.Web.Activities
	{
	public class AIQuestionAnsweringWorkflow : WorkflowBase
	{
	protected override void Build(IWorkflowBuilder builder)
	{
	var routeDataVariable = builder.WithVariable<IDictionary<string, object>>();
	var questionVariable = builder.WithVariable<string>();
	var answerVariable = builder.WithVariable<string>();
	builder.Root = new Sequence
	{
	Activities =
	{
	// Define the HTTP endpoint / we will process this URL: /ask-question/<some-question>
	new HttpEndpoint
	{
	Path = new("ask-question/{question}"),
	SupportedMethods = new(new[] { HttpMethods.Get }),
	CanStartWorkflow = true,
	RouteData = new(routeDataVariable)
	},
	// Set the question variable to the question from the URL
	new SetVariable
	{
	Variable = questionVariable,
	Value = new (context =>
	{
	var routeData = routeDataVariable.Get(context);
	return routeData["question"]!.ToString();
	})
	},
	// Send the text to the LLM and get response and return as a HTTP response
	new WriteHttpResponse
	{
	StatusCode = new(HttpStatusCode.OK),
	Content = new (async context =>
	{
	var client = new OllamaChatClient(
	new Uri("http://localhost:11434"),
	modelId: "llama3.1"
	);
	var question = questionVariable.Get(context);
	var answer = await client.GetResponseAsync($"Answer the following question: {question}");
	return answer.Text;
	})
	}
	}
	};
	}
	}
	}

view raw AIQuestionAnsweringWorkflow.cs hosted with ❤ by GitHub

Let's break down this workflow:

1. Variables Setup:

   • routeDataVariable: Stores the route parameters

   • questionVariable: Holds the question from the URL

   • answerVariable: Stores the AI's response

2. Workflow Activities:

   • HttpEndpoint: Creates an HTTP endpoint that accepts GET requests

   • SetVariable: Extracts the question from the URL parameters

   • WriteHttpResponse: Sends the question to Ollama and returns the response

When we run our application, Elsa will automatically discover and register this workflow. As we make HTTP requests to our endpoint, Elsa will create workflow instances and store their execution state in the database tables we saw earlier. This includes tracking the workflow's progress, storing variables, and maintaining execution history.

Let's run the application and verify our setup:

dotnet run --project AbpWorkflowDemo.Web

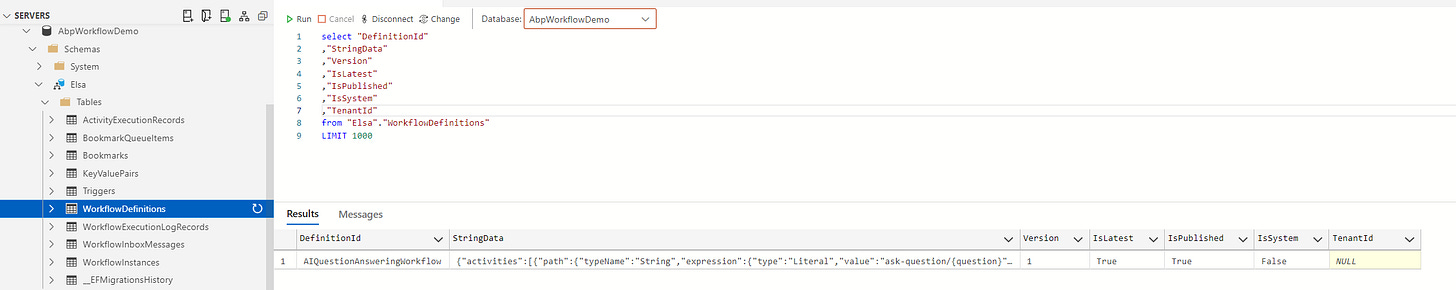

Once the application is running, you can check your PostgreSQL database to see the workflow-related tables being populated:

---

---

Testing the Workflow

You can test the workflow by sending a GET request to:

http://localhost:<port>/workflows/ask-question/what+is+the+capital+of+france

Here is the video of the workflow in action:

The workflow:

1. Receives the question

2. Processes it through the Llama 3.1 model

3. Returns the AI-generated response

Alternative: Programmatic Workflow Execution

You can also trigger the workflow programmatically using the IWorkflowRunner service:

private readonly IWorkflowRunner _workflowRunner;
var workflow = await _workflowRunner.RunAsync<AIQuestionAnsweringWorkflow>();

Using Elsa Studio

For a visual workflow design experience, you can use Elsa Studio. It's a Blazor-based UI that connects to your Elsa server.

To run Elsa Studio using Docker:

docker pull elsaworkflows/elsa-studio-v3-4-0-preview:latest
docker run -t -i -e ASPNETCORE_ENVIRONMENT='Development' -e HTTP_PORTS=8080 -e ELSASERVER__URL=http://localhost:13000/elsa/api -p 14000:8080 elsaworkflows/elsa-studio-v3:latest

This will run Elsa Studio on port 14000. For more details on setting up Elsa Studio locally, refer to the official documentation.

Stay tuned for an upcoming post where I'll provide a detailed guide on running Elsa Studio locally and designing workflows through its intuitive UI. Let me know in the comments if you'd like to see specific aspects covered!

Conclusion

In this article, we've explored how to integrate Elsa 3 with the ABP Framework and created an AI-powered workflow example. The combination of Elsa's powerful workflow capabilities with ABP's robust framework provides a solid foundation for building complex business processes. The AI integration example demonstrates how easily you can extend workflows with modern AI capabilities.

Stay tuned for our next article where we'll dive deeper into Elsa Studio and explore more advanced workflow scenarios!
